The evolution of millimeter-wave radar has taken a revolutionary leap with the rise of 4D imaging radar, a technology poised to replace traditional 3D radar in advanced driver-assistance systems (ADAS) and autonomous vehicles. From Tesla’s Hardware 4.0 to SAIC’s Rising Auto R7 and Changan’s Deepal SL03, automakers are increasingly adopting 4D radar for its superior environmental perception. But what exactly sets 4D radar apart from its 3D predecessor? Let’s dive into the technical distinctions, advantages, and why 4D radar is reshaping the future of automotive sensing.
What Is 3D Millimeter-Wave Radar?
Traditional 3D millimeter-wave radar operates by emitting electromagnetic waves (24–300GHz) and analyzing reflected signals to detect three key parameters:
- Distance: Calculated via time-of-flight (ToF) measurements.
- Speed: Derived from the Doppler effect.
- Azimuth angle: Determined using phase differences between received signals.
While effective for basic collision avoidance, 3D radar has critical limitations:
- Low resolution: Limited antennas restrict its ability to discern small or closely spaced objects.
- No height data: It cannot detect elevation, treating overhead signs and ground obstacles as equivalent.
- Static object ambiguity: Struggles to differentiate stationary hazards (e.g., traffic signs vs. roadblocks).
These flaws often force automakers to deprioritize 3D radar data, capping its reliability in complex scenarios.
UAV 4D millimeter wave radar 0.4m-100m detection range
4D Imaging Radar: Adding the Missing Dimension

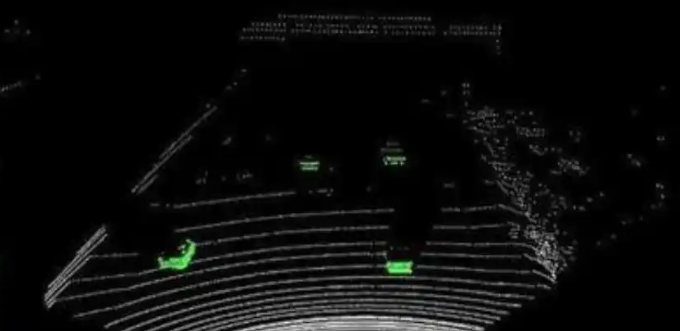

4D millimeter-wave radar introduces a fourth dimension: elevation (height). By capturing vertical angles, it generates LiDAR-like point clouds at a fraction of the cost. Here’s how it achieves this leap:
Technical Innovations
- Multi-Antenna Architectures:
- Cascaded MMIC Chips: Stacks multiple radar chips to expand vertical antenna arrays, boosting resolution.
- Virtual Aperture Imaging: Uses algorithms to multiply virtual antennas, enhancing angular precision.
- Integrated Chip Solutions: Consolidates antennas into a single chip for compact, low-power designs.
- Enhanced Detection:
- Height measurement: Identifies overhead obstacles (e.g., bridges, signage) and slopes.
- High-resolution point clouds: Detects small objects (e.g., pedestrians, debris) with sub-1° accuracy.
- Static object classification: Distinguishes between harmless overpasses and critical roadblocks.
3D vs. 4D Radar: A Side-by-Side Comparison
| Feature | 3D Radar | 4D Imaging Radar |
|---|---|---|
| Dimensions | Distance, speed, azimuth | Adds elevation (height) |
| Resolution | Limited by sparse antennas | 10x higher (virtual/physical antennas) |
| Static Object Handling | Prone to false positives/negatives | Classifies and prioritizes obstacles |
| Cost | Low | Moderate (30% of LiDAR’s cost) |
| Point Cloud Output | No | Yes (LiDAR-like imaging) |
| Weather Resilience | Strong (works in rain, fog, dust) | Maintains 3D’s all-weather reliability |
Why 4D Radar Is Disrupting Autonomous Driving
- Cost-Effective LiDAR Alternative:
- At 30% of LiDAR’s price, 4D radar delivers comparable low-beam LiDAR performance for urban driving.
- Ideal for mass-market vehicles where LiDAR costs remain prohibitive.
- Superior Environmental Awareness:
- Detects height-critical obstacles (e.g., low bridges, falling cargo) missed by 3D radar.
- Enables safer lane changes and highway merging with 360° coverage.
- Scalability:
- Compact designs (e.g., MR82-UAV) allow integration into drones, robots, and UAVs beyond automotive uses.
Can 4D Radar Replace LiDAR?
While 4D radar excels in cost and reliability, LiDAR still dominates in high-resolution 3D mapping (e.g., 128-beam sensors). Key considerations:
- Resolution gap: 4D radar matches low-beam LiDAR (16–32 beams) but lags behind premium LiDAR.
- Cost trends: LiDAR prices are falling, narrowing the cost advantage.
- Sensor fusion: Most automakers combine 4D radar, LiDAR, and cameras for redundancy.
Challenges for 4D Radar Adoption
- Standardization: No unified testing protocols or regulatory frameworks.
- Automaker adaptation: OEMs need time to optimize 4D radar integration.
- Perception algorithms: Requires AI upgrades to leverage 4D data fully.
Conclusion: The Road Ahead for 4D Radar
4D imaging radar is undeniably the future of automotive sensing, offering a balanced mix of affordability, reliability, and enhanced perception. While it may not fully replace LiDAR, its ability to democratize advanced ADAS features will accelerate autonomous driving’s mainstream adoption. As automakers like Tesla and SAIC pave the way, 4D radar’s role in shaping safer, smarter mobility is only beginning.
