Product Description:

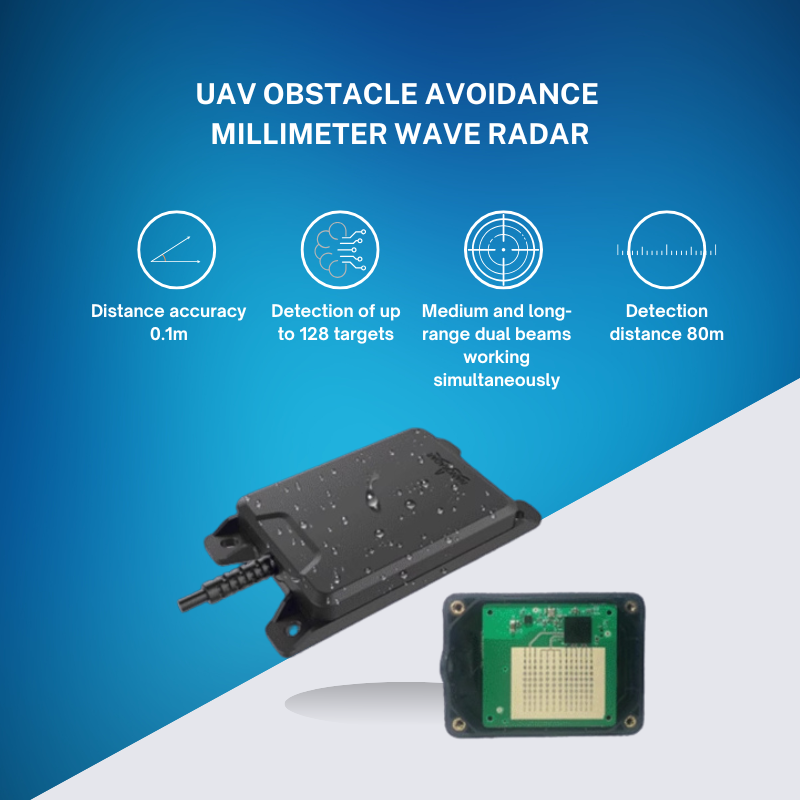

Enhance your drone’s safety and navigation precision with the MR72 77GHz 80m UAV Collision Avoidance Radar Module. Designed for advanced obstacle avoidance and reliable distance measurement, this millimeter wave radar sensor provides real-time, accurate detection up to 80 meters with a distance accuracy of 0.1 meters. Equipped with a cutting-edge two-transmitter four-receiver antenna array, the MR72 is capable of tracking up to 128 targets simultaneously, making it ideal for complex and dynamic environments.
Operating in the 77GHz frequency band, the MR72 supports dual mid-long range beam operation, delivering robust performance with high sensitivity and exceptional stability even in harsh weather conditions such as rain, snow, fog, and dust. The device’s compact, lightweight (102x56x16.5mm), and low power consumption (2.5W) design facilitates easy integration with various UAV platforms.
Designed with versatility in mind, the MR72 offers two sensitivity modes — normal and high — allowing users to optimize detection based on the flying environment. The high sensitivity mode is perfect for open areas to detect fine objects like power lines and small branches, while the low sensitivity mode minimizes false targets in cluttered environments. Sensitivity modes can be switched conveniently through PC software or command configuration, eliminating the need to frequently update radar firmware.
The radar module supports full directional obstacle avoidance, and customers can network multiple MR72 units (up to 8 with configurable IDs) to build a comprehensive radar array for 360-degree avoidance coverage. The MR72 also provides seamless integration with APM flight controllers and Pixhawk systems (serial interface version) without requiring modifications to ArduPilot source code — enabling quick deployment with simple parameter settings.
The product comes with proprietary PC software for thorough testing and configuration, ensuring you get the most out of your radar system for UAV applications.
Key Features:
- 80-meter max detection range with 0.1m distance accuracy
- Operates at 77GHz millimeter wave band with multi-target detection up to 128 targets
- Dual mid-long range beam working simultaneously for enhanced detection
- High sensitivity and stability with two sensitivity modes adjustable via software or commands
- Two-transmitter four-receiver antenna, ensuring high signal sensitivity
- Compact size (102x56x16.5mm), lightweight, and low power consumption (2.5W)
- IP66-rated housing for reliable operation in extreme weather
- Supports CAN & UART communication interfaces for flexible integration
- Compatible with APM and Pixhawk flight controllers (serial version) for plug-and-play use
- Supports ID configuration (0-7) for flexible multi-radar mesh networks and 360° collision avoidance
- Comes with proprietary PC software for configuration and testing
Applications:
- UAV precision obstacle avoidance and collision prevention
- Mapping and surveying drones
- Agricultural crop protection drones
- Logistics and delivery UAV navigation
- Firefighting and emergency rescue drones
- Power line inspection and utility drones
- All-weather operations in rain, snow, fog, and dust environments
With the MR72 radar module, expand your drone’s obstacle detection capabilities and ensure safer, more reliable flights in a wide range of operational scenarios.
| Parameter | Specification |
|---|---|
| Brand | Nanoradar |
| Model | MR72 |
| Type | 77GHz Radar Sensor |
| Working Principle | Magnetron Sensor |
| Origin | Mainland China |
| Weight | 90 g |
| Operating Voltage | 5 – 32 V DC |
| Operating Current | 1 A |
| Dimensions | 102 × 56 × 16.5 mm |
| Communication Interface | UART, CAN |
| Emission Frequency | 76.00 – 77.00 GHz |
| Emission Power | 29.8 dBm |
| Modulation Method | FMCW |
| Refresh Rate | 30 Hz |
| Power Consumption | 2.5 W |
| Measurement Range | 0.2–40 m @ ±56° / 0.2–80 m @ ±15° |
| Distance Accuracy | ±0.1 m (0.2–40 m) / ±0.18 m (0.2–80 m) |
| Speed Range | ±30 m/s |
| Speed Accuracy | ±0.03 m/s (0.2–40 m) / ±0.87 m/s (0.2–80 m) |
| Azimuth Beamwidth | 112° (0.2–40 m) / 30° (0.2–80 m) |
| Elevation Beamwidth | 14° (0.2–40 m) / 15.6° (0.2–80 m) |
| Communication Protocol | UART / CAN |
| Storage Temperature | -40 to 90 °C |
| Operating Temperature | -40 to 85 °C |
